Wheel Type Composting Turner Machine

Short Description:

Wheel Type Composting Turner Machine is an automatic composting and fermentation equipment with long span and depths of livestock manure, sludge and garbage, filtration mud, inferior slag cakes and straw sawdust in sugar mills, and is also widely used in fermentation and dehydration in organic fertilizer plants, compound fertilizer plants, sludge and garbage factories, garden farms and bismuth plants.


Product Detail

Product Tags

Introduction

What is the Wheel Type Composting Turner Machine?

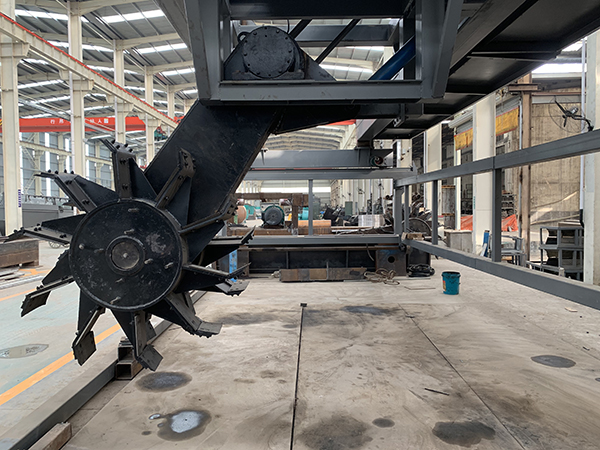

Wheel Type Composting Turner Machine is an important fermentation equipment in large scale organic fertilizer making plant. The wheeled compost turner can rotate forward, backward and freely, all of which are operated by one person. Wheeled composting wheels work above tape compost stacked in advance; the rotary knives installed on strong rotating drums under the tractor rack are tools for mixing, loosening or moving stacking stacks.

Application of Wheel Type Composting Turner Machine

Wheel Type Composting Turner Machine are widely used in fermentation and water removal operations such as organic fertilizer plants, compound fertilizer plants, sludge and garbage factories, garden farms and mushroom plants.

1. Suitable for aerobic fermentation, it can be used in conjunction with solar fermentation chambers, fermentation tanks and shifters.

2. Products obtained from high-temperature aerobic fermentation can be used for soil improvement, garden greening, landfill cover, etc.

Working Principle

1. Wheel Type Composting Turner Machine can move forward, backward and turn freely and all these moves are manipulated by one person.
2. The bio-organic materials should be piled first on the ground or in workshops in a strip shape.
3. Compost turner works by bestriding above the strip compost piled in advance; rotating knives installed on a strong rotary drum under the tractor rack are the exact tools to blend, loosen or move piled compost.
4. After turning, a new strip compost pile is formed and wait to continue fermentation.
5. There is compost thermometer to measure compost temperature so as to a second time turning.

Advantages of Wheel Type Composting Turner Machine

1. The high turning depth: the depth can be 1.5-3m;
2. The large turning span: the largest width can be 30m;
3. The low energy consumption: adopt unique energy efficient transmission mechanism, and the energy consumption of the same operating volume is 70% lower than that of the traditional turning equipment;
4. Turning with no dead angle: the turning speed is in symmetry, and under the displacement of the governor shift trolley, there is no dead angle;
5. High degree of automation: it is equipped with fully automated electrical control system, when the turner is working without the need for an operator.

Wheel Type Composting Turner Machine Video Display

Wheel Type Composting Turner Machine Model selection

Model

Main power (kw)

Mobile motor power supply (kw)

Tramless power (kw)

Turn width            (m)

Turn depth            (m)

YZFDLP-20000

45

5.5*2

2.2*4

20

1.5-2

YZFDLP-22000

45

5.5*2

2.2*4

22

1.5-2
