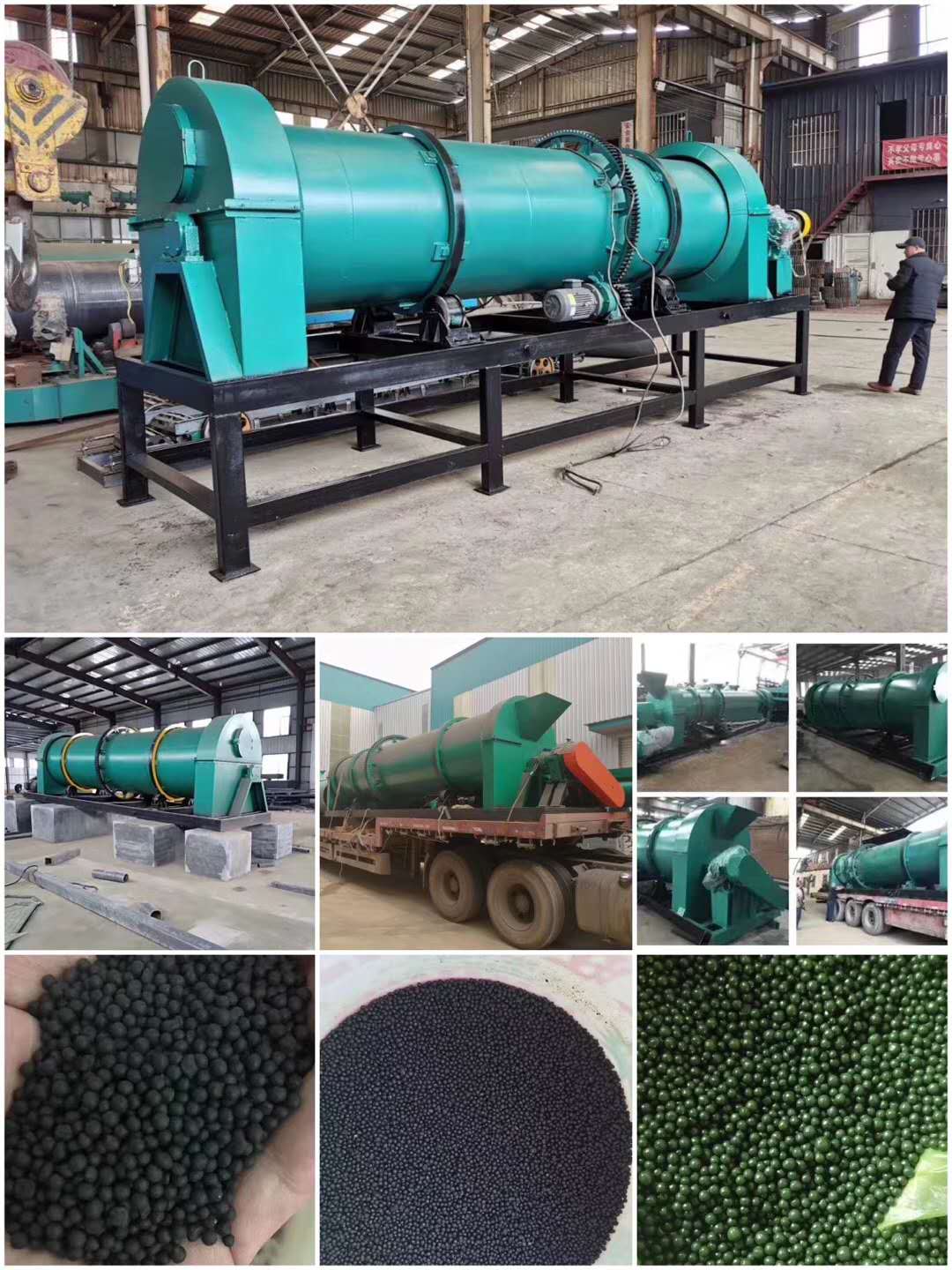

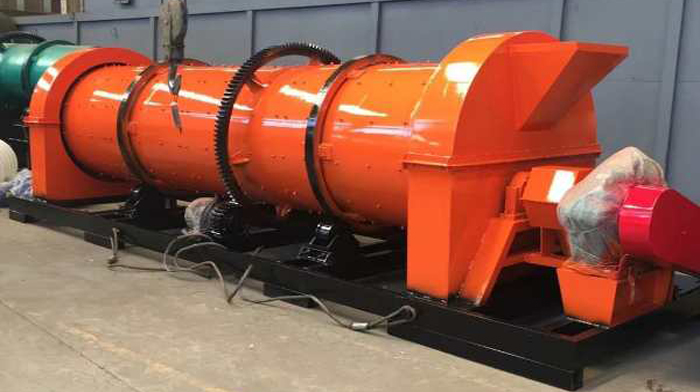

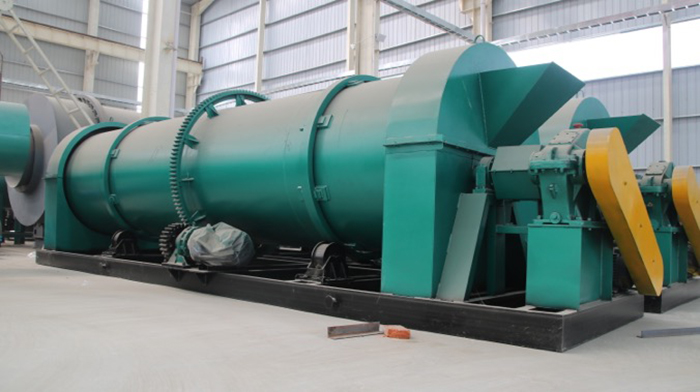

New Type Organic & Compound Fertilizer Granulator

Short Description:

The New Type Organic & Compound Fertilizer Granulator make full use of the aerodynamic force generated by the high-speed rotating mechanical stirring force in the cylinder to make the fine materials continuous mixing, granulation, spheroidization, extrusion, collision, compact and strengthen, finally become into granules.


Product Detail

Product Tags

Introduction

What's the New Type Organic & Compound Fertilizer Granulator?

The New Type Organic & Compound Fertilizer Granulator is a granulation equipment commonly used in the production of compound fertilizers, organic fertilizers, biological fertilizers, controlled release fertilizers, etc. It is suitable for large-scale cold and hot granulation and high, medium and low concentration compound fertilizers produce.

The main working mode is granulation wet granulation. Through quantitative water or steam, the basic fertilizer is fully chemically reacted after being conditioned in the cylinder. Under the set liquid conditions, the rotation of the cylinder is used to make the material particles Produces a crushing force to agglomerate into balls.

What is the new compound fertilizer granulator used for?

This New Type Organic & Compound Fertilizer Granulator is a new patented product developed by our company and the Agricultural Machinery Research Institute. The machine can not only granulate a variety of organic matter, especially for fiber materials which are difficult to be granulated by conventional equipment, such as crop straw, wine residue, mushroom residue, drug residue, animal dung and so on. The granulation can be made after fermentation, and it also can be achieved the better effect of grain making to acid and municipal sludge.

Features of New Type Organic & Compound Fertilizer Granulator

The ball formation rate is up to 70%, the ball strength is high, there is a small amount of return material, the return material size is small, and the pellet can be re-granulated.

New Type Organic & Compound Fertilizer Granulation Production Line Here we can provide you

10,000-300,000 tons/year NPK compound fertilizer production line
10,000-300,000 tons/year organic fertilizer production line
10,000-300,000 tons/year bulk blending fertilizer production line
10,000-300,000 tons/year Ammonia-acid process, Urea based compound fertilizer production line
10,000-200,000 tons/year animal manure, food waste, sludge and other organic waste treatment and granulation equipment

New Type Organic & Compound Fertilizer Granulator Video Display

New Type Organic & Compound Fertilizer Granulator Model Selection

Model

Bearing Model

Power (KW)

Overall Size (mm)

FHZ1205

22318/6318

30/5.5

6700×1800×1900

FHZ1506

1318/6318

30/7.5

7500×2100×2200

FHZ1807

22222/22222

45/11

8800×2300×2400
