Organic fertilizer spherical granulator

I. Product Overview:

Organic fertilizer spherical granulator is a special granulation equipment designed for the production of organic fertilizer, biological organic fertilizer and compound microbial fertilizer. The organic fertilizer spherical granulator uses the adhesive performance of the material itself, through the rotation of the granulation disc and the spraying of additives, so that the powdered or granular organic fertilizer gradually coalesces and rolls in the granulator, and finally forms into spherical particles.

The organic fertilizer spherical granulator not only effectively improves the appearance roundness and uniformity of organic fertilizer particles, but also improves the fluidity and fertilization efficiency of fertilizer, and avoids the defects of traditional powdered fertilizer such as easy dust, uneven fertilization, and fast loss.

II, The working principle:

The organic fertilizer spherical granulator mainly adopts the wet rolling granulation process, and the overall working process is as follows:

Material incoming-

The water content of the organic fertilizer raw materials after fermentation, maturation and crushing is adjusted to between 25% and 35%, and is evenly fed into the granulation tray through the conveying equipment.

Adjuvant spray-

According to the nature of the material and the granulation requirements, an appropriate amount of binder or water mist can be sprayed into the granulation tray simultaneously to improve the adhesion of raw materials and the granulation molding rate.

Rolling granulation-

The granulating disc has a certain inclination angle (usually 40°-55°), the disc body rotates under the drive of the motor, and the material rolls, flips, and stacks along the disc wall under the comprehensive action of centrifugal force, gravity and friction, and gradually rolls into a ball.

Pellet forming and discharge-

As the particles gradually increase, when the predetermined particle size is reached, the finished particles will automatically slide out of the edge of the tray and be transported to the next drying and cooling process through the discharge port, depending on the tilt angle and rotation speed of the granulation disc.

III, Product application:

The organic fertilizer spherical granulator has a wide range of applications, covering almost all kinds of organic fertilizer production needs in the fields of agriculture, animal husbandry, urban resource reuse, etc.:

Livestock and poultry manure organic fertilizer production-

For example, chicken manure, pig manure, cow manure, etc. are composted and fermented and then crushed into uniform particles to improve the commercialization grade of fertilizer.

Crop straw, rice husk, vegetable residue treatment-

These agricultural residues are fermented and used as raw materials to make granular organic fertilizer and realize resource utilization.

By-products of the food, sugar and alcohol industries

For example, the filter sludge, distiller’s grains, and vinegar residue of the sugar factory are processed into granules through this equipment to improve the recycling value of waste.

Bio-organic fertilizer and microbial fertilizer processing-

It can be granulated with a variety of functional microbial agents to make granulated products, which are convenient for packaging and field application.

Soil amendment, ecological restoration fertilizer-

For poor, heavy saline-alkali and acidified soils, special granulation is formulated to improve the effect of soil structure improvement.

IV, Product features:

1. High pelletizing rate -

This machine adopts optimized granulation disc structure design and tilt angle control, so that the balling rate can reach more than 90%, effectively reduce the return rate, reduce energy consumption and labor costs.

2. The particles are rounded and the particle size can be adjusted

It can flexibly adjust the rotation speed, spray volume and feeding speed of the granulation tray to control the particle diameter, and the conventional range is 3-5mm, which can adapt to different fertilizer application needs.

3. Strong adaptability, wide range of materials

Whether it is livestock manure, straw, distiller’s grains, sugar residue, fungus residue or all kinds of fermented organic matter, it can be quickly pelletized without the need to add a large number of binders.

4. Reasonable structure and convenient operation

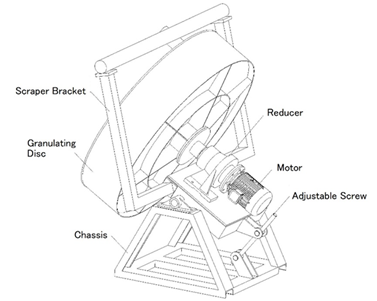

The equipment is composed of a granulation disc, a driving device, an angle adjustment support device and a spraying device, with simple structure, convenient operation and low maintenance cost.

5. High degree of automation

It can be equipped with automatic batching, conveying, drying, cooling, screening and packaging systems to form a fully automated organic fertilizer production line to improve production efficiency.

6. Green environmental protection, no dust-free

The granulation process is carried out in a closed manner, equipped with a dust removal device, and there is basically no dust overflow, which is in line with the current environmental protection policy and the concept of agricultural green development.

V. Technical parameters:

The data is for reference only, and non-standard sizes or capacity models can be customized according to user needs.

VI. Conclusion:

As an indispensable and important equipment for the commercial processing of organic fertilizer, the organic fertilizer spherical granulator not only improves the appearance of the product and the fertilization effect, but also improves the economic benefits of fertilizer application and agricultural production. Choosing a granulator with high spherical rate, reasonable structure and stable operation is the key for fertilizer manufacturers to reduce production costs and improve market competitiveness.
