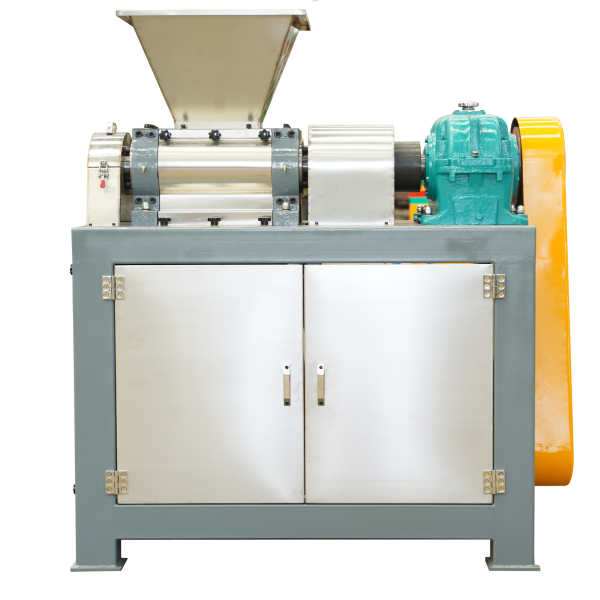

Pair roll extrusion granulator (also known as double roller granulator, dry extrusion granulator) is a kind of room temperature dry powder granulation equipment, which is widely used in the organic fertilizer and compound fertilizer industry because it does not require drying, energy saving and environmental protection.
The following is a detailed description of its price, configuration and influencing factors for your reference:
1. Price range reference:
|
Yield specifications |
Power configuration |
Mold form |
Reference price (RMB) |
| 1-2 tons/hour | 11kW~15kW | A pair of flat die rollers | ¥28,000 ~ ¥45,000 |
| 3-4 tons/hour | 18.5kW~22kW | Porous shaped molds | ¥55,000 ~ ¥75,000 |
| 5-6 t/h (heavy-duty) | 30kW~37kW | Replaceable mold components | ¥80,000 ~ ¥120,000 |
| Customized large units | 45kW or more | Continuous double roller + conveyor line | ¥150,000 ~ ¥200,000+ |
Note: The above prices are bare metal ex-factory prices, excluding taxes and transportation and installation costs. The final price affects the mold material, motor brand, PLC control system, etc.
2. Price influencing factors:
|
Influencing factors |
illustrate |
| Output and power | The larger the production capacity, the higher the power, the higher the strength and cost of the equipment |
| Mold design and material | Different shape particles require custom molds, and the mold material (stainless steel or alloy steel) directly affects the service life and price |
| Degree of automation | The price difference between manual feeding and automatic weighing + conveying system is large; PLC intelligent system is more costly |
| Equipment material selection | The stainless steel (used for food and medical fertilizer) is 20-50% higher than that of ordinary carbon steel |
| Whether to support the whole line | If the whole line includes elevator, mixer, screening machine, packaging machine, etc., the price of the whole system needs to be calculated according to the project |
3. Zhengzhou Yizheng’s quotation advantages:
Zhengzhou Yizheng Heavy Machinery Equipment Co., Ltd., as a professional fertilizer equipment manufacturer, provides standard and customized roller extrusion granulators:
|
Models |
parameter |
Single machine quotation range |
| 1T/2T type | Output 1~2 tons/hour, 11kW, carbon steel frame | ¥28,000~38,000 |
| 3T type | Output 3 tons/hour, 18.5kW, alloy steel mold | ¥55,000~65,000 |
| 5T type | Output 5 tons/hour, 30kW, all-stainless steel shell + automatic lubrication system | ¥85,000~110,000 |
Services include:
Free drawings and scheme selection;
The mold can be customized (cylindrical particles, flat balls, special-shaped, etc.);
Optional complete systems such as automatic feeding, screening, and packaging.
4. Procurement suggestions:
Please confirm the following information before purchasing to get an accurate quote:
*Estimated hourly output (e.g. 3 tons/hour);
*Raw material properties (dry powder?) Is there a lump? Does it contain fiber? ）；
*Desired particle shape/particle size (e.g. 3mm columnar?) 6mm spherical? ）；
*Whether the whole production line configuration is required (such as whether it is equipped with mixing, feeding, and packaging);
*Material requirements (do you need to be all stainless steel?) Is there an export standard? ）
If you need a quotation or technical data sheet, please provide the above information, and I can cooperate with you to design a complete set of dry granulation process flow chart and cost budget. Please feel free to make a request.
For more inquiries or more information, please contact:
Sales Department / Tina Tian
+86 – 15538237222
Zhengzhou Yizheng Heavy Machinery Equipment Co., Ltd
Email: tianyaqiong@yz-mac.cn
Website: www.yz-mac.com
Post time: Aug-04-2025
