I. Product Overview

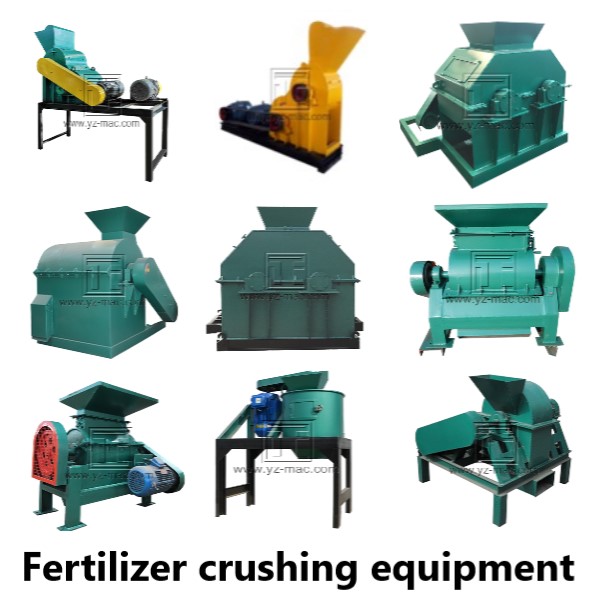

High concentration organic fertilizer pulverizer is a crushing equipment specially designed for fertilizer raw materials with high humidity, high fiber and high organic matter content. It is widely used in the refinement of high-concentration organic materials such as livestock manure, crop straw, kitchen waste, biogas residue and biogas slurry, and provides high-quality raw materials for subsequent fermentation, granulation, drying and other processes.
Compared with the traditional grinding equipment, the high-concentration organic fertilizer grinder adopts the crushing principle of combining strong cutting and high-speed blowing, which can effectively process materials with a humidity of up to 40%-60%, and will not have problems such as blockage and sticking to the wall. Zhengzhou Yizheng offers a wide range of specifications and models to meet the different needs of small family farms to large-scale fertilizer production lines.
II. How it works
(1) Feeding system
The material is fed into the feed port of the pulverizer through the conveying equipment (such as belt conveyor or screw conveyor), and the feeding speed is automatically adjusted to ensure the smooth operation of the equipment.
(2) High-speed rotary crushing
The inside of the pulverizer is equipped with high-strength alloy blades or hammers, which rotate at high speed under the drive of a motor. After the material enters the crushing chamber, it is quickly crushed into uniform particles by multiple actions such as shearing, tearing, and impact of the blade.
(3) Material screening and discharge
The crushed material is screened through the screen, and the material that reaches the appropriate particle size is discharged from the equipment, and the material with excessive particle size will be hit again until the discharge requirements are met.
(4) Anti-clogging and cooling system
The inside of the equipment is designed with an automatic anti-clogging system to ensure that wet materials are not easy to adhesion. At the same time, some models are equipped with an air-cooling system to effectively reduce the temperature rise during crushing and protect the activity of the material.
III. Product application
(1) Agricultural organic fertilizer field
Livestock and poultry manure treatment: pig manure, chicken manure, cow manure and other high-humidity materials preliminary crushing treatment.
Crop straw crushing: refinement of fiber materials such as corn straw, wheat straw, and straw.
Biogas residue and biogas slurry treatment: crushing and recovery of high-humidity organic residues generated in biogas projects.
(2) Environmental protection and renewable resource treatment
Food waste treatment: crushing and treatment of municipal food waste for organic fertilizer production or energy reuse.
Yard waste crushing: Crushing of green wastes such as branches, leaves, and grass clippings to facilitate compost fermentation.
(3) Industry and other fields
Biomass energy: crushing wood chips, rice husks and other biomass raw materials for the production of biomass pellet fuel.
Food industry: Treat organic waste generated by food processing and reuse it.
IV. Features:
(1) Effective crushing, strong adaptability
It adopts multi-stage grinding structure, which can be formed at one time without multiple processing.
It is suitable for high-humidity and high-fiber materials, and solves the problem of easy clogging of traditional pulverizers.
(2) Energy saving, environmental protection, stable operation
The equipment has a compact design and low energy consumption, which is more than 30% more energy-saving than the traditional grinder.
Equipped with a dust removal system, it can effectively reduce dust emissions and meet environmental protection standards.
(3) Intelligent control, easy to operate
Equipped with an intelligent control system, the feeding speed and crushing force can be adjusted.
One-key start and stop design, simple operation and convenient maintenance.
(4) Wear-resistant material, long life
The blades are made of high-strength alloy steel or high-chromium steel, which is wear-resistant and corrosion-resistant, and has a long service life.
The wear-resistant lining plate is installed inside the equipment to effectively reduce wear and extend the life of the equipment.
(5) It can be customized to meet a variety of needs
Support the customization of different screen pore sizes and blade materials to meet different fineness requirements.
We provide small, medium, and large equipment solutions according to the scale of production.
Zhengzhou Yizheng’s high-concentration organic fertilizer crusher, with its effective, durable, energy-saving and environmental protection advantages, has been widely used in agricultural organic fertilizer, environmental protection and renewable resources, biomass energy and other fields, is your ideal choice to improve production efficiency and reduce costs.
If you need equipment selection, quotation or customized service, please feel free to contact us, we will provide you with the best quality equipment and service!
