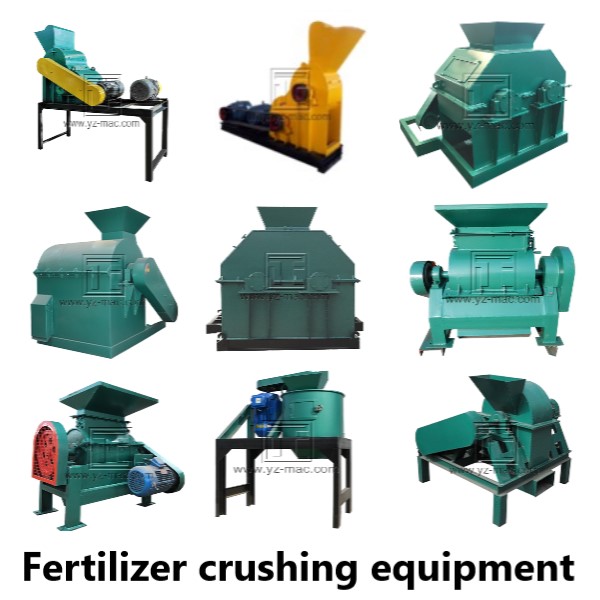

Bio organic fertilizer grinder

I. Product Overview:

Bio-organic fertilizer crusher is an effective equipment dedicated to crushing bio-organic fertilizer raw materials, the main function of bio-organic fertilizer crusher is to crush larger organic materials into fine particles suitable for the production of organic fertilizer, which is convenient for subsequent mixing, fermentation, accumulation and other production processes.

It is widely used in organic fertilizer production lines. The bio-organic fertilizer raw material is crushed to homogeneous granules to facilitate the subsequent fermentation, mixing and granulation processes. The plant can process livestock manure, straw, crop residues, peat, compost and other organic waste.

The working principle of the bio-organic fertilizer crusher is generally to crush the raw materials by rotating the blade or hammer, and then separate the suitable particles through the screen. Common bio-organic fertilizer grinders include blade mills and hammer mills.

The bio-organic fertilizer crusher has the characteristics of efficiency, energy saving and durability, and is an important production equipment for bio-organic fertilizer production enterprises.

II. The working principle:

The bio-organic fertilizer grinder mainly relies on a high-speed rotating blade or hammer blade for crushing operations, and its working principle is as follows:

1. Raw material transportation: The raw material is evenly fed into the crushing chamber through the feed port.
2. High-speed grinding: The blade or hammer in the grinding chamber is driven by high-speed rotation to have high-speed impact, shearing and grinding with the raw material.
3. Particle screening: The size of the particles is controlled by the built-in screen, and the qualified particles are discharged through the screen.
4. Discharge: The crushed material is conveyed to the next process or collection area through the discharge port.

The entire process is continuous and efficient, and the screen can be changed to adjust the particle size as needed.

III. Product application:

The bio-organic fertilizer grinder is suitable for the crushing and processing of a variety of organic materials, and the main application scenarios include:

1. Organic fertilizer production line

Crush livestock and poultry manure, biomass waste and other raw materials to prepare refined raw materials before fermentation.

2. Agricultural waste disposal

Crushing straw, crop residues, etc., for biocomposting or reuse.

3. Animal husbandry manure treatment

Livestock and poultry manure is processed for environmental protection and resource utilization.

4. Food processing waste disposal

Shredding organic waste from food processing for composting or bioenergy production.

IV. Product features:

1. Effective shredding

Using high-quality blades or hammers, the grinding efficiency is high, and the material can be quickly crushed to the ideal particle size.

2. Durability

It is made of thickened wear-resistant materials to prolong the service life of the equipment.

3. Low energy consumption

After optimized design, the motor power matching is reasonable, energy saving and environmental protection.

4. Compact structure

The equipment has a small footprint and is easy to install and maintain.

5. Wide applicability

It can process a variety of organic materials to meet the needs of different raw material crushing.

6. Safe and reliable

Equipped with protective devices to ensure the safety of operators.

V. Equipment selection and technical parameters:

When choosing a bio-organic fertilizer crusher, the appropriate model should be selected according to the production scale, raw material type and particle requirements.

The main parameters include:

• Capacity: 1000kg/h to 10,000kg/h
• Motor power: 5.5kW-55kW
• Feed particle size: ≤50mm
• Finished particle size: 0.5mm-5mm (adjustable).
• Material: carbon steel, stainless steel optional

VI. Maintenance and maintenance:

1. Check the blade or hammer regularly

Ensure sharpness, and replace it in time if it is found to be worn.

2. Lubrication maintenance

Regularly inspect bearings and transmission parts and add lubricating oil.

3. Clean the pulverizer

Clean the crushing chamber after each use to prevent the accumulation of material residues.

4. Electrical inspection

Check the motor circuit and control system to ensure normal operation.

VII. Comparison of advantages:

Bio-organic fertilizer crusher is a key equipment in modern organic fertilizer production, which has been widely used in various organic fertilizer production lines with its high-efficiency, energy-saving and durable characteristics. Choosing the right pulverizer equipment helps to improve production efficiency, reduce production costs, and ensure the quality of final fertilizer products, which is an indispensable and important equipment for organic fertilizer production enterprises.

In the production process, it is very important to choose the crusher equipment that is suitable for your own production needs, and you need to choose the appropriate crusher model and configuration according to the nature of raw materials and production requirements to ensure production efficiency and product quality. At the same time, when using and maintaining the crusher, it is also necessary to pay attention to relevant safety matters to ensure the safety of the workplace and equipment.
